Sorted by RA; click on thumbnails to enlarge<br>
Fits follow the scheme laid out in Draine et al. (2007)<br>
Red dashed: 5000 K blackbody<br>
Blue dotted: PDR<br>
Green long dashed: Diffuse<br>
<hr>

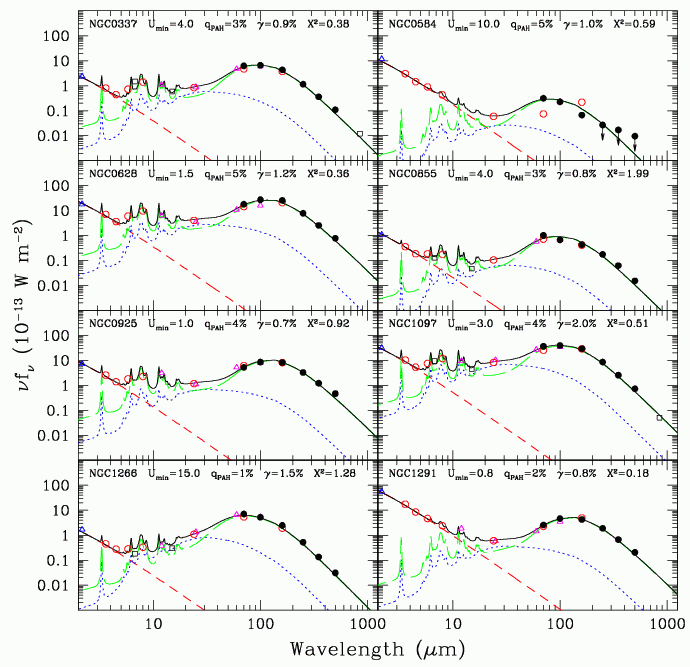

<a href="f2a.gif "><img alt="" src="f2a.gif " style="border: 0px solid ; width: 250px; height:200px;"></a>

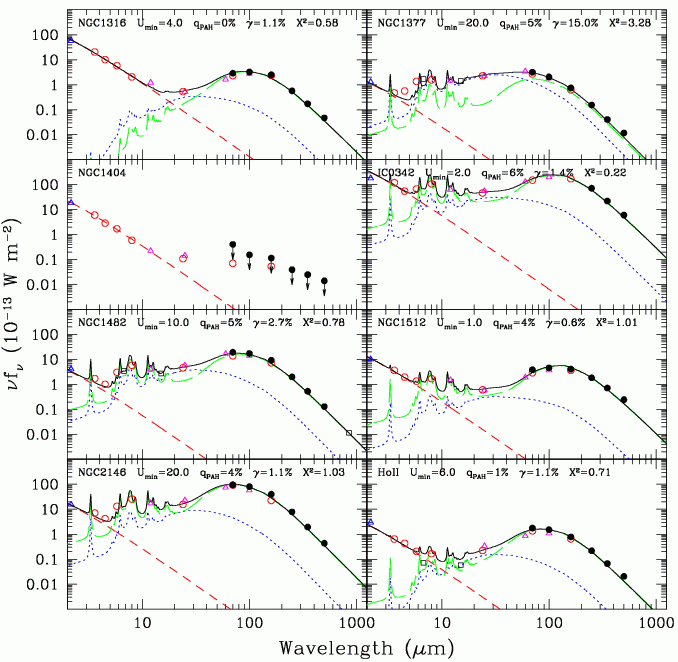

<a href="f2b.gif "><img alt="" src="f2b.gif " style="border: 0px solid ; width: 250px; height:200px;"></a>

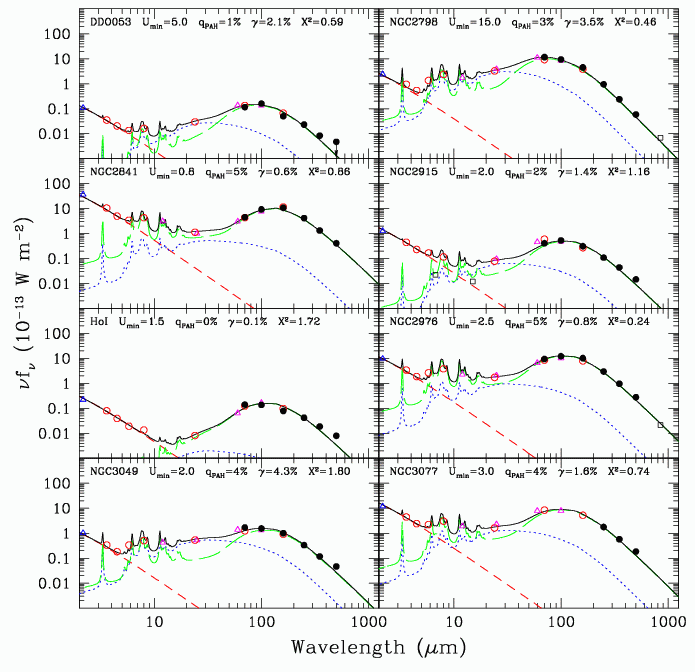

<a href="f2c.gif "><img alt="" src="f2c.gif " style="border: 0px solid ; width: 250px; height:200px;"></a>

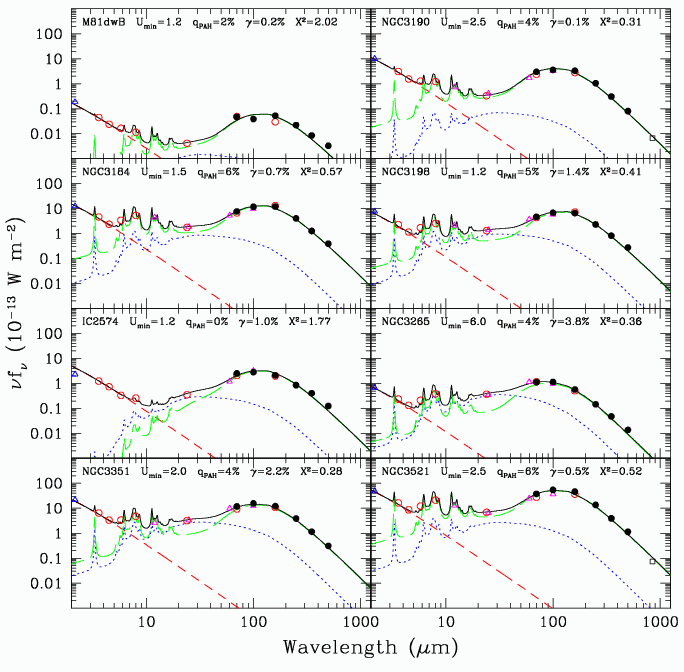

<a href="f2d.gif "><img alt="" src="f2d.gif " style="border: 0px solid ; width: 250px; height:200px;"></a>

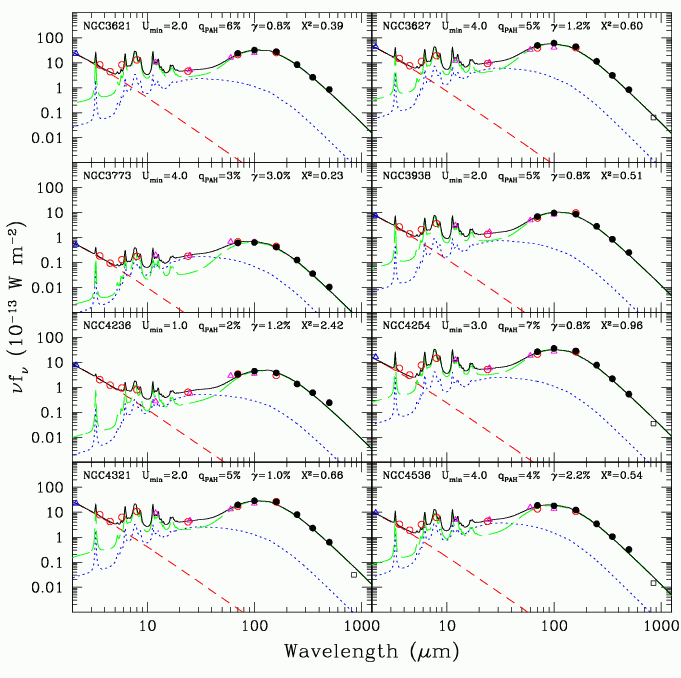

<a href="f2e.gif "><img alt="" src="f2e.gif " style="border: 0px solid ; width: 250px; height:200px;"></a>

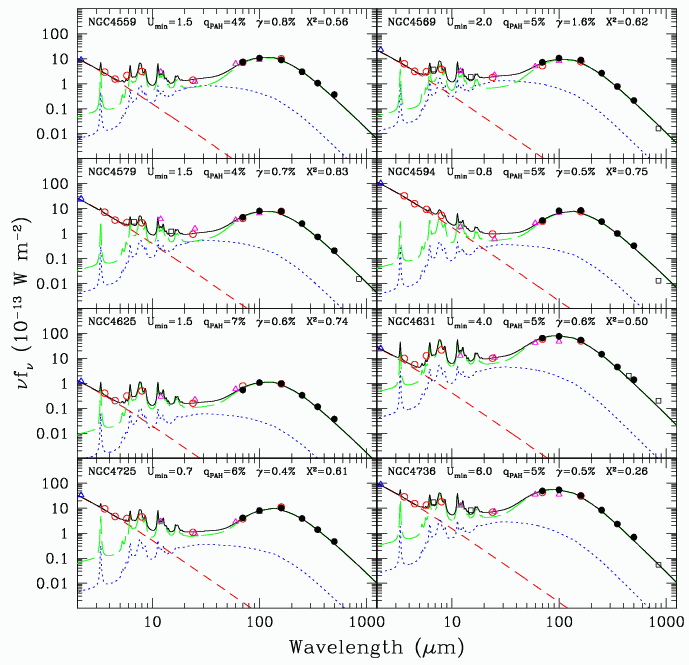

<a href="f2f.gif "><img alt="" src="f2f.gif " style="border: 0px solid ; width: 250px; height:200px;"></a>

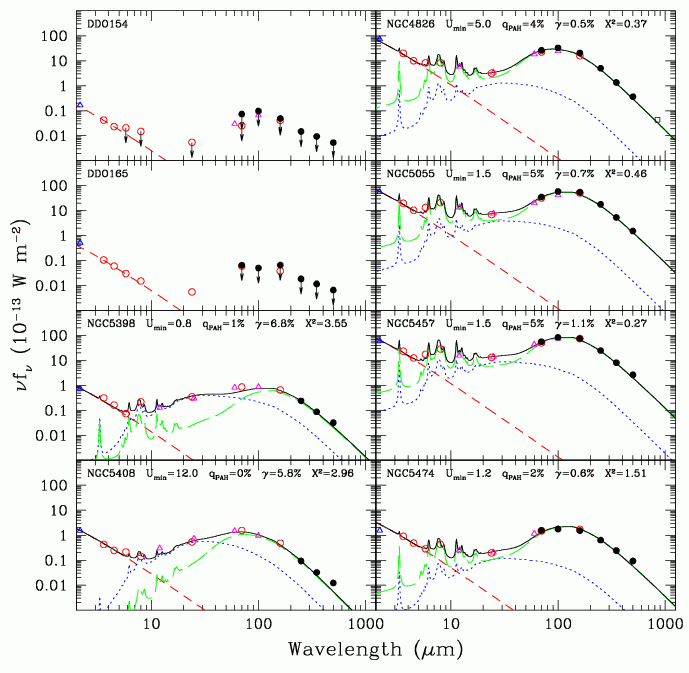

<a href="f2g.gif "><img alt="" src="f2g.gif " style="border: 0px solid ; width: 250px; height:200px;"></a>

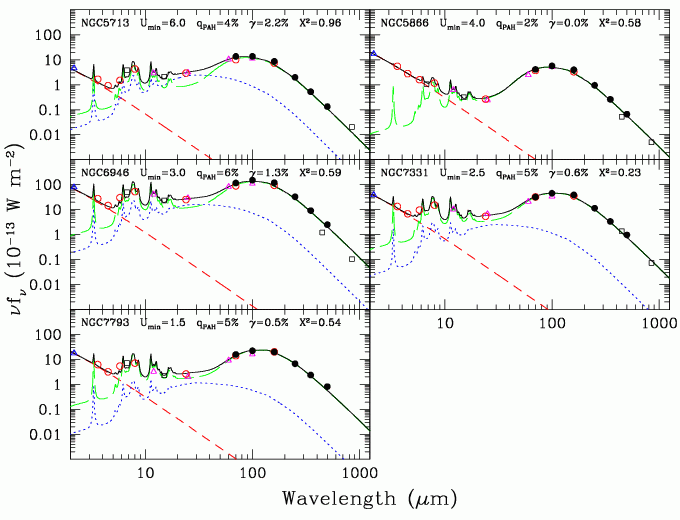

<a href="f2h.gif "><img alt="" src="f2h.gif " style="border: 0px solid ; width: 250px; height:200px;"></a>
<hr>
