NIIS Cryo-Mechanical Design

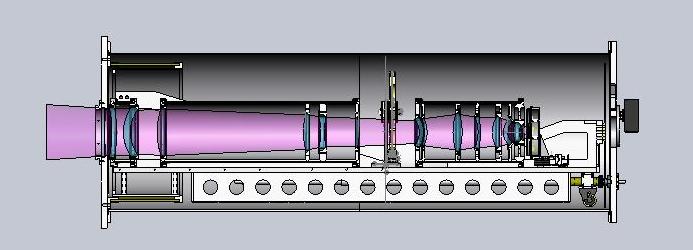

Side-cut View of the NIIS Dewer. Light enters from the left and is shown in pink. The optical bench and the LN2 tank is visable along the bottom. It is attached to the front flange with a large G10 ring and the rear flange via a G10 star-shaped structure. The lenses are assembled into three stacks; the corrector, the collimator, and the camera. These stacks are mounted within tubes and along with the filter wheel and detector assembly are mounted to the optical bench.

Cryo-Mechanical Components
